Viewing the Bill Mix List

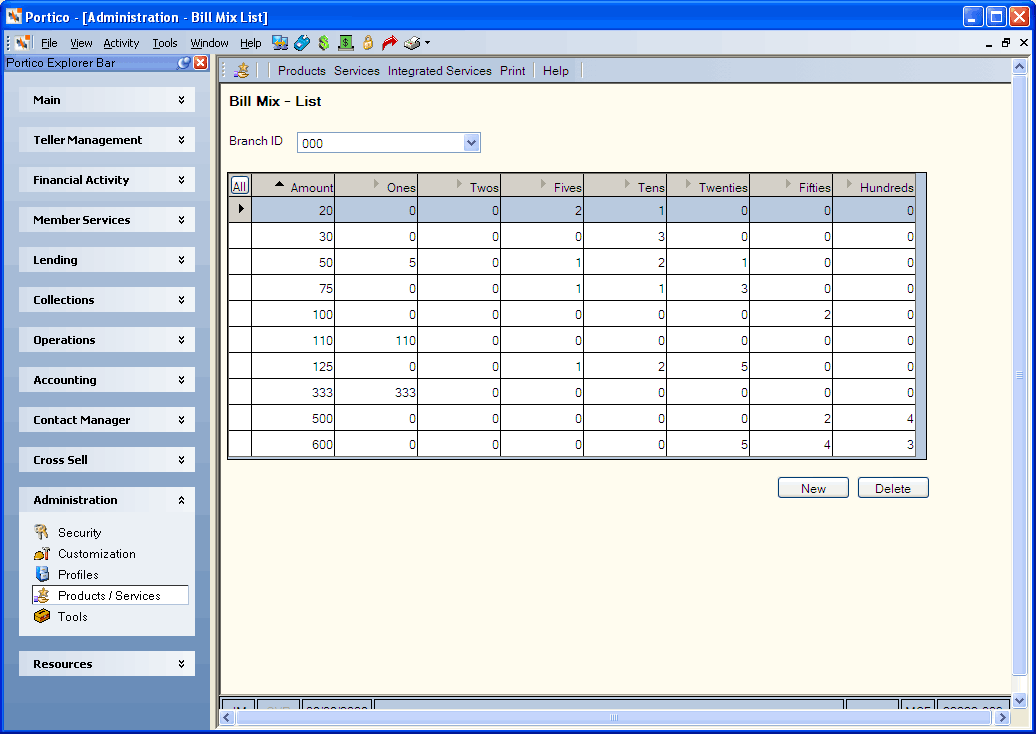

The Bill Mix - List window lists the bill mixes. You can define a bill mix at the branch level or the user level. If a bill mix does not exist for a specific amount, the dispenser will use the highest denomination to determine the appropriate mix.

To view the bill mix at the branch level, on the Portico Explorer Bar, click Products/Services from the Administration menu. On the Products/Services menu bar, click Products, then click Regular Bill Mix.

How do I? and Field Help

On the Bill Mix - List window at the branch level, click the Branch ID down arrow to view the bill mixes for a specific branch. The bill mix grid displays the quantity of each denomination that should be dispensed to make up the total amount.

• Click New to open the Bill Mix – New window and set up a new bill mix.
• Click the amount on the Bill Mix - List window to open the Bill Mix – Update window and modify an auto mix.
• To delete an auto mix, select a bill mix row and click Delete. When the confirmation message appears, click OK to confirm the deletion.

To view the bill mix at the user level, click Tools, then click Profiles, then Application Profile. On the Application Profile dialog box, click Apps, then click Bill Mix. Click Edit Bill Mix to display the Bill Mix - List dialog box.

To add new bill mix, enter total amount of the bill mix in whole dollars (up to 9 digits) in the Amount field. Then, enter the number of bills to make up the amount:

Field	Description
Ones	The number of one dollar bills that should be dispensed. Length: 3 numeric
Twos	Two dollar bills can be received by a cash device, but they cannot be dispensed.
Fives	The number of five dollar bills that should be dispensed. Length: 3 numeric
Tens	The number of ten dollar bills that should be dispensed. Length: 3 numeric
Twenties	The number of twenty dollar bills that should be dispensed. Length: 3 numeric
Fifties	The number of fifty dollar bills that should be dispensed. Length: 3 numeric
Hundreds	The number of one hundred dollar bills that should be dispensed. Length: 3 numeric

Then, click Add to add the bill mix.

To update a bill mix, select the row, change the amounts and click Update.

To delete a bill mix, select the row and click Delete.
