Adding the Device Controller - Lutzwolf Interface

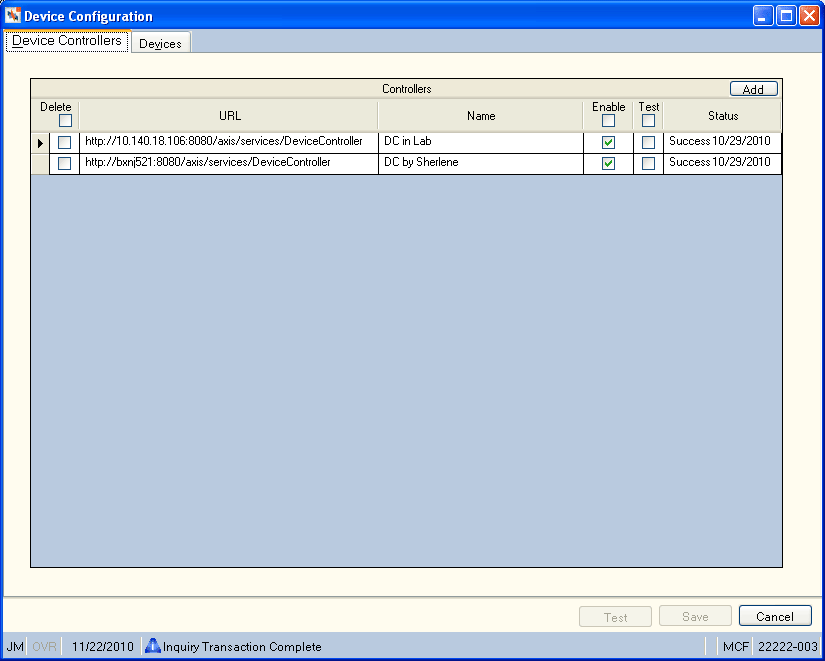

The Device Controllers tab on the Device Configuration dialog box lists the device controllers set up for the credit union.

To open the Device Configuration dialog box, on the Portico Explorer Bar, click Products/Services from the Administration menu. On the Products/Services top menu, click Products, then click Device Configuration. The Device Configuration dialog box appear with the Device Controllers tab on top.

How do I? and Field Help

To add a new device controller, click Add to add a new row to the Controllers grid. Then, complete the following information:

Column	Description
URL	The URL of the device controller.
Name	The credit union-defined name of the device controller.
Enable	Select the Enable check box to use the device controller. To take a device controller out of service temporarily, clear the Enable check box and click Save.

To delete a device controller, select the Delete check box and click Save.

To test the connection of Portico and the device controller, select the Test check box and click Test. The Status column indicates if the test connection failed or was successful with a date stamp.

Click Save to save your changes to the device controller.

Click Cancel to close the dialog box without saving your changes to the device controller.
