Application Profile - Apps - Bill Mix

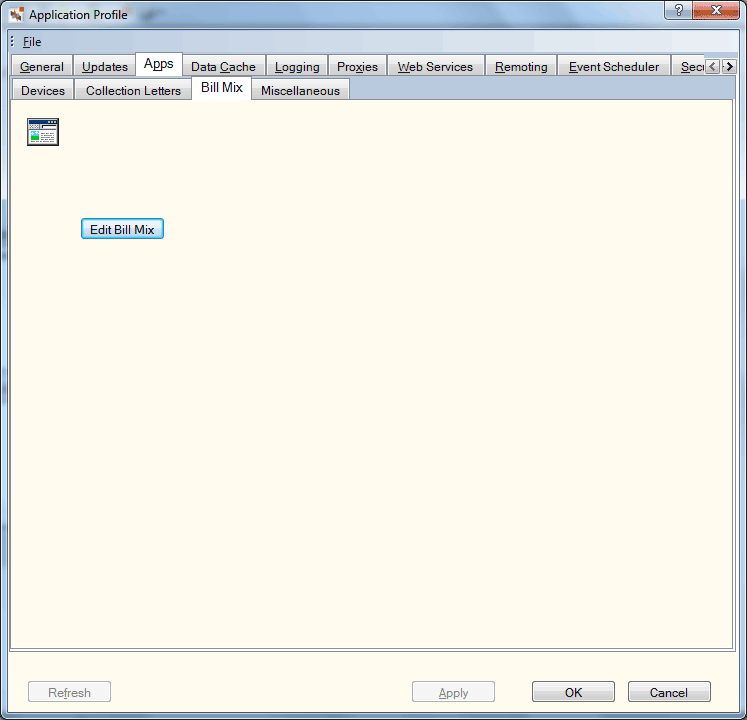

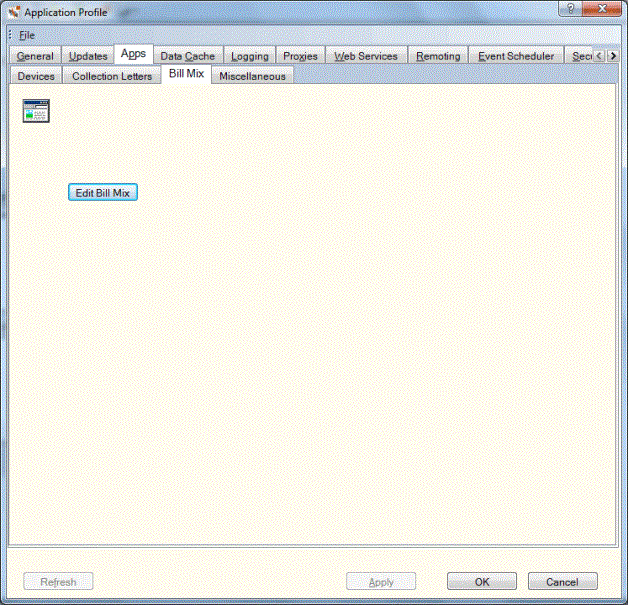

The Apps - Bill Mix tab lets you set up the user-level bill mixes.

How do I? and Field Help

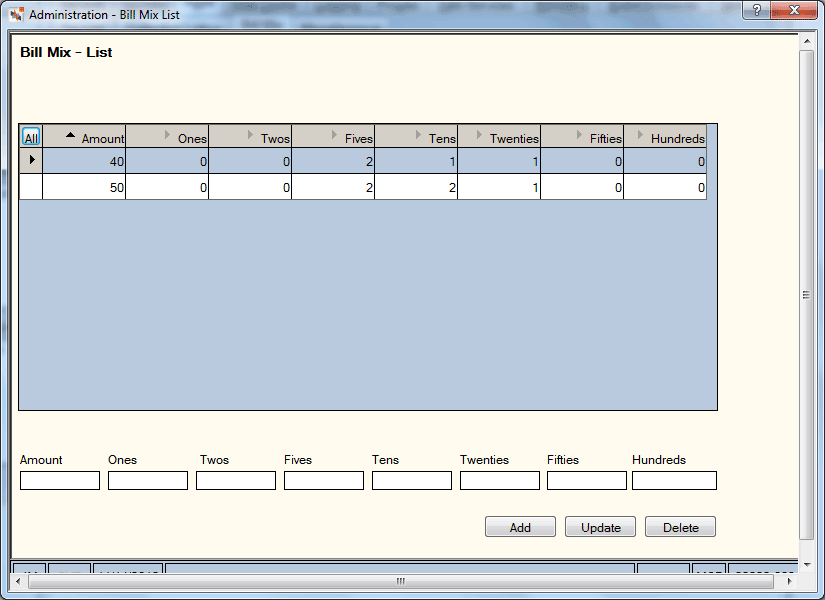

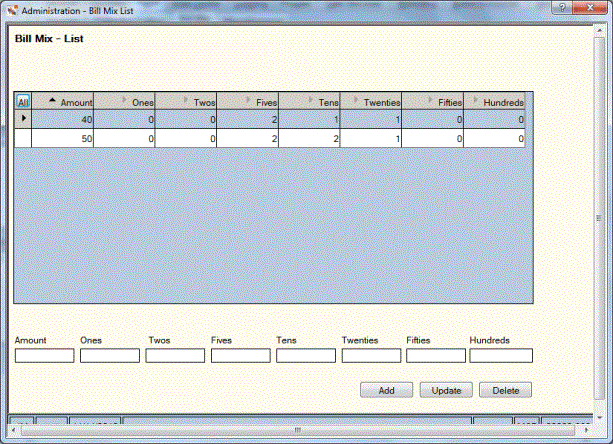

Select Edit Bill Mix to display the Bill Mix - List dialog box.

If a bill mix does not exist for a specific amount, the dispenser will use the highest denomination to determine the appropriate mix.

Enter the whole dollar amount in the Amount field (no 0.00) and the number of bills to make up the amount in the Ones, Fives, Tens, Twenties, Fifties, and Hundreds fields. Then select Add.

To update a bill mix, select the row, change the amounts and select Update.

To delete a bill mix, select the row and select Delete.

Select Apply to apply your changes to the Application Profile settings. Select OK to accept your changes. Select Refresh to refresh the Application Profile settings. Select Cancel to close the dialog box without saving your changes.
