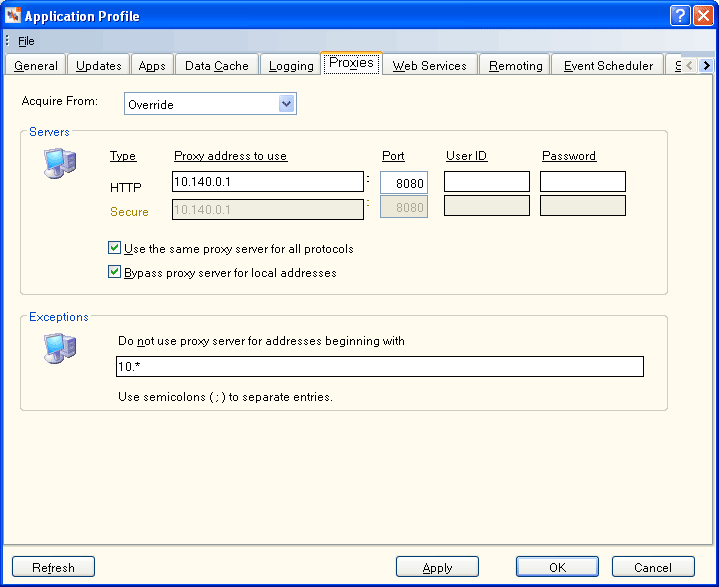

Application Profile - Proxies

The Proxies tab contains the proxy settings used for Internet access.

How do I? and Field Help

Click the Acquire From down arrow and select Default from the drop-down list. The remaining fields will automatically be completed.

Field	Description
HTTP Proxy address to use	The address of the server that receives requests from your web browser and then makes the request to the Internet on your behalf. It then returns the results to your browser. This field is system-defined.
HTTP Port	The connection point used to access the proxy server. This field is system-defined.
HTTP User ID	The user ID required to access the proxy server. This field is system-defined.
HTTP Password	The password required to access the proxy server. This field is system-defined.
Secure Proxy address to use	The address of the server that receives requests from your web browser and then makes the request to the Internet on your behalf. It then returns the results to your browser. This field is system-defined.
Secure Port	The connection point used to access the proxy server. This field is system-defined.
Secure User ID	The user ID required to access the proxy server. This field is system-defined.
Secure Password	The password required to access the proxy server. This field is system-defined.
Use the same proxy server for all protocols	If selected, the same proxy server will be used for all protocols. This field is system-defined.
Bypass proxy server for local addresses	If selected, the proxy server will be bypassed for local addresses. This field is system-defined.
Do not use proxy server for addresses beginning with	The list of URLs and IP addresses that do not require the use of a proxy server. These are oftentimes internal web sites or servers. This field is system-defined.

Click Apply to apply your changes to the Application Profile settings. Click OK to accept your changes. Click Refresh to refresh the Application Profile settings. Click Cancel to close the dialog box without saving your changes.
